ADA Easy Stair®

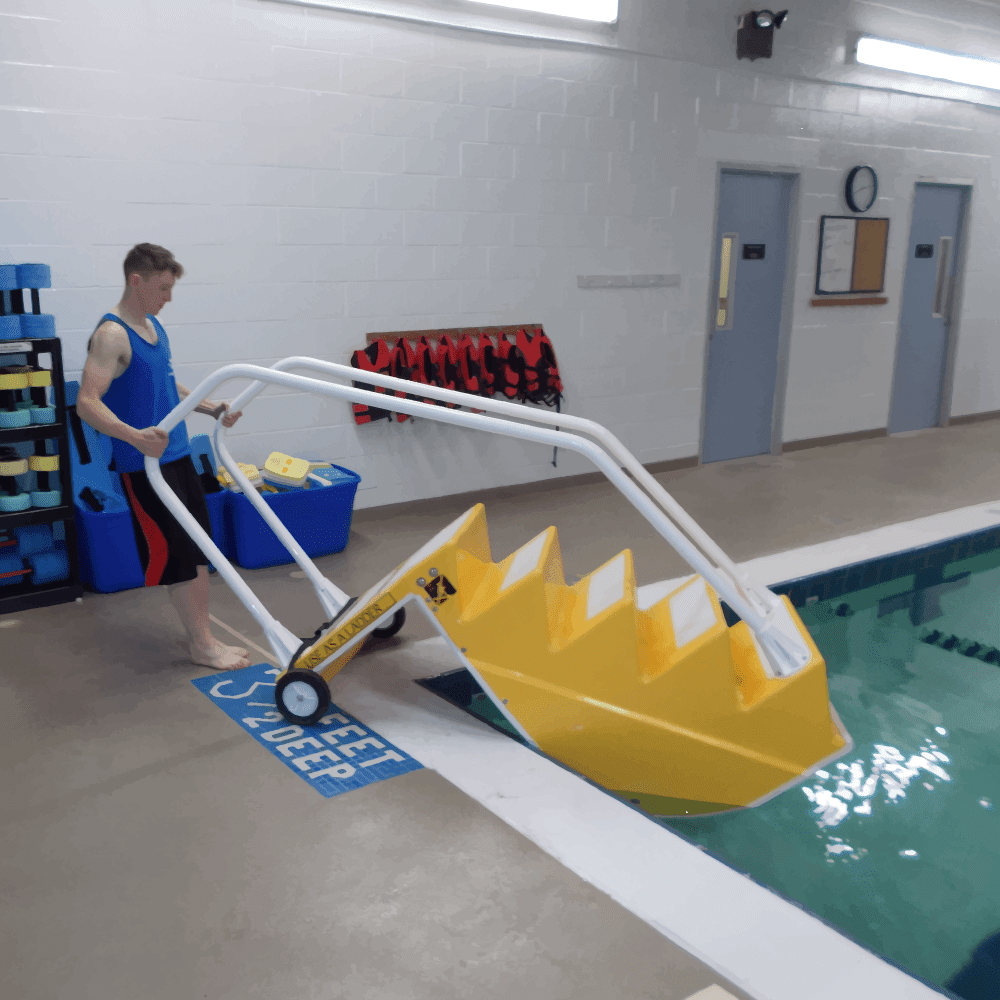

Meeting all the 2010 ADA Guidelines for Accessible Design, our new and fully compliant ADA Easy Stair ® offers a proven and economical solution for larger pools requiring a secondary means of pool access. Our stairs include a custom dolly for portability. You can download our ADA Easy Stair Measurement Guide by clicking here.

MODELS:

• • Available in Medium Blue, Light Blue, and Safety Yellow

• • 5-step: deck-to-floor measurement between 38" and 47":

• • 6-step: deck-to-floor measurement between 48" and 57"

• • 7-step: deck-to-floor measurement between 58" and 67"

• • NOTE: Pool Measurement Guide and Instructions available.

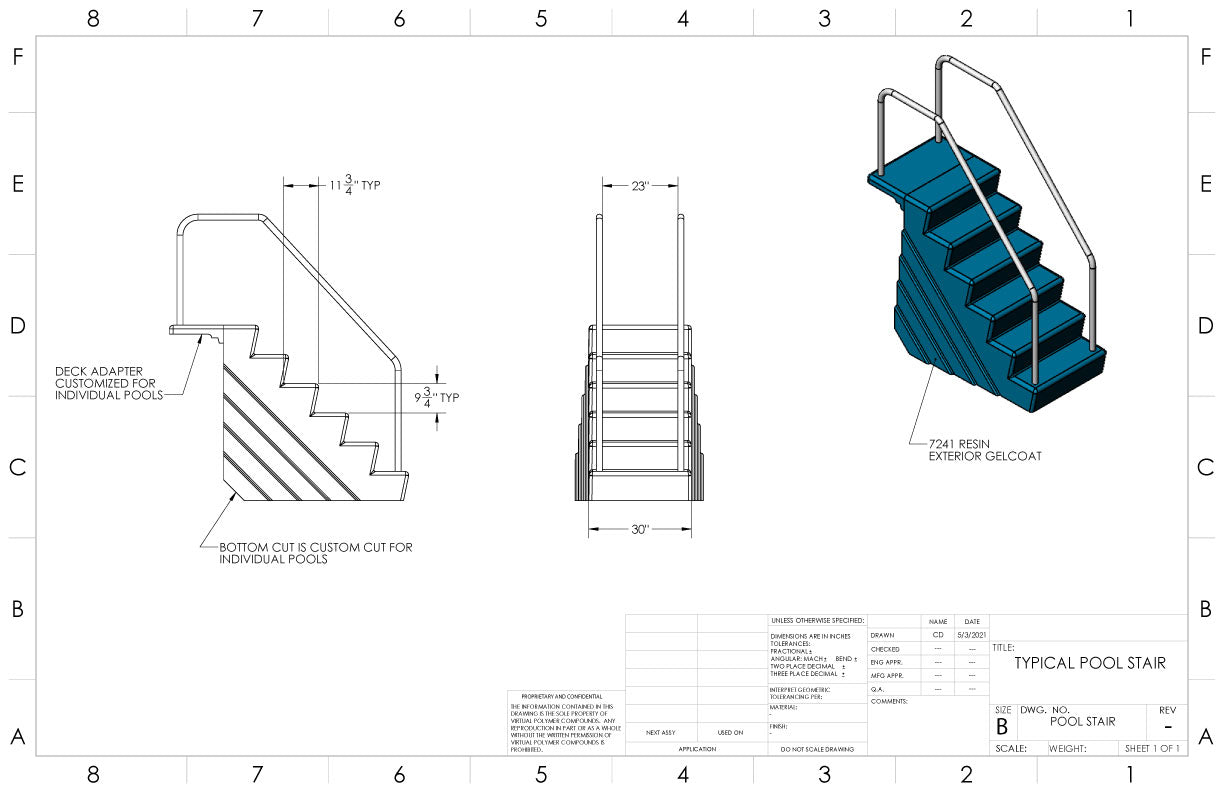

SPECIFICATIONS:

• • Step height - rise: 9-³/₄", all steps
  • Step depth run: 11-¹/₈", nosing to nosing
  • Overhang: 1-¹/₄", sloped riser
  • Tread depth: 12-³/₈" nose to riser
  • Nosing: ³/₈" radius, contrasting color
  • Top entry platform: 0" to 11" above deck, var. for pool depth

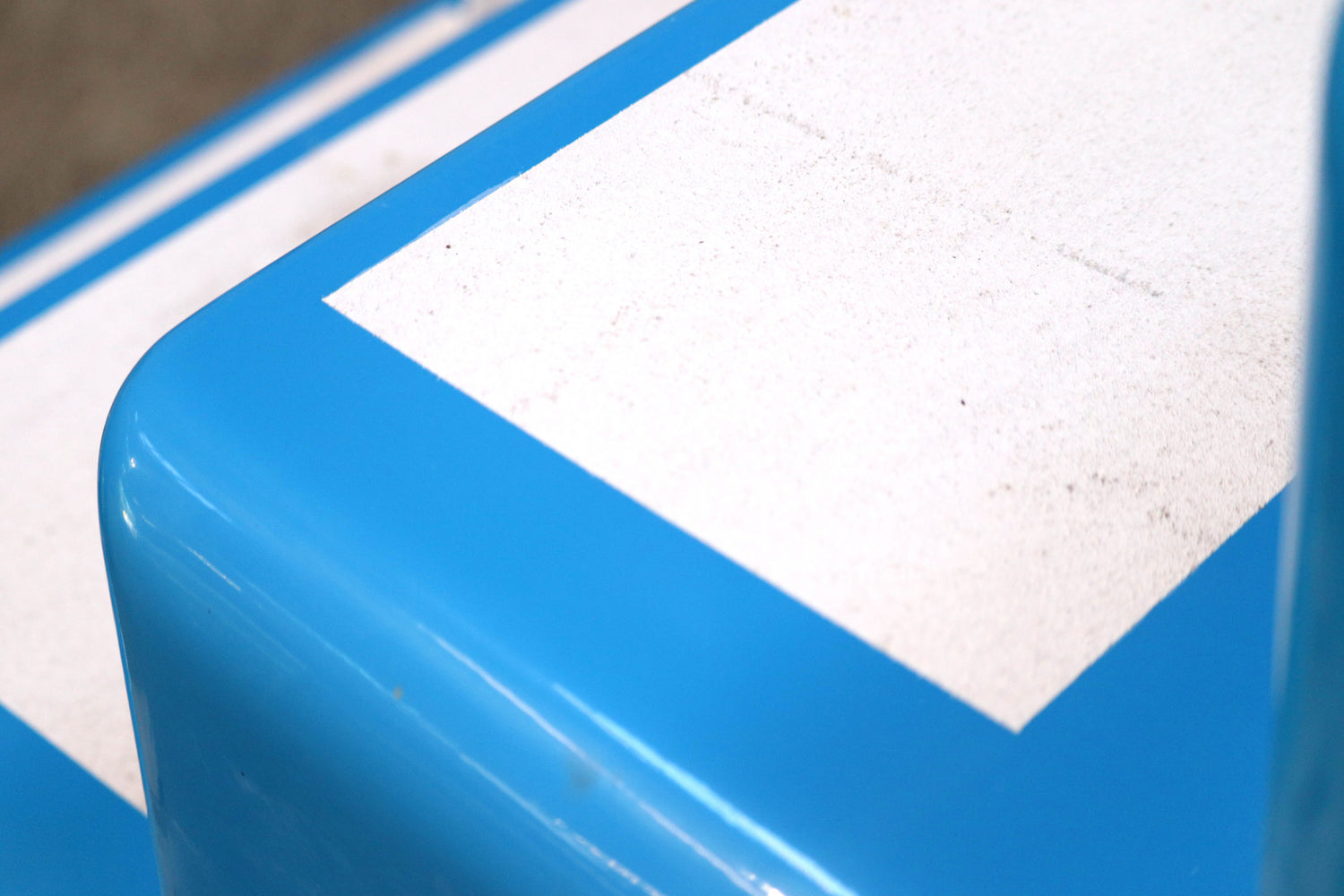

  • Non-skid treads: contrasting color, all treads and entry platform
  • Two-year Warranty

Handrails - 505 Handrails

• • Clearance between handrails .... 23"
  • Handrail height: 34" above entry platform and tread nosing
  • Handrails (2): continuous, entry platform to bottom step
  • Upper handrail extension: 18" back from top stair nosing
  • Handrails: 1.9" white, non-conductive, reinforced

NEC 680.26 Equipotential Bonding The fiberglass ADA Easy Stair® comes standard with custom white non-conductive handrails to comply with NEC pool codes and requires no pool bonding. Click Here to visit our Facebook page.
